Bridge Saws, Slab Gang Saws & Stone Splitters

SIMCOUSA is a supplier of Bridge Saws and Gang Saws for the granite and stone industries.  Below are samples of our best selling machines, from our complete line of large granite and stone machinery. The SIM-625A Bridge Saw is designed for granite countertop and marble countertop fabrication and represents one of the best values on today’s market.  The SIM-400 Bridge Saw has the capability of operating with diamond saw blades up to 400mm in diameter, making it one of the most versatile bridge saws on the market.  The SIM-80 Gang Saw is primarily designed for cutting stone blocks into slabs.  It is extremely heavy duty for years of dependable service. The Split SIM-40 Stone Splitter is a hydraulically operated, 40 ton stone splitting machine for all kinds of stone.  Financing and leasing available on machinery subject to customer’s credit approval.  Credit Application Form.

Call SIMCOUSA at 561-676-3337 and we will be happy to answer any questions you may have about stone saws.

All Machines have 1 year parts and labor Warranty
Leasing up to 84 months with 24 months no penalty option or
 loan financing



Granite Bridge Saw, Model SIM-625A $36,000
with installation included in USA, FOB Dalton, GA
Payments as low as $600 per month!

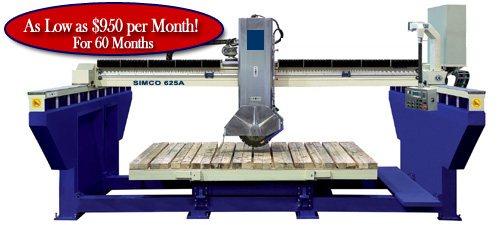

Granite Bridge Saw, Model SIM-625A

The SIMCOUSA SIM-625A Uni-body Granite Bridge Saw is a PLC controlled machine with cutting dimensions set by computer. All operations are executed manually by the operator or automatically by the program carrying out parallel cuts with a maximum of 8 different dimensions repeatable up to 1999 times. The control panel has a LCD display mounted on the right hand side of the machine. The control panel is positioned such that it makes it easy for the the operator to control the machine when the stone is being positioned. The saw is equipped with a laser guide to aid in lining up the cut. The blade head can be tilted from 0 to 45 degrees.  Made in China.

Specifications

  • Disc Motor Power 24 HP direct drive, 380V 3Phase 100Amp Motor with 208, 220, 230, 240 volt primary to secondary transformer included
  • Blade Size 16-24”
  • Blade Tilt Angle 0-45 degrees (powered)
  • Hydraulic table 0-360 degrees with stops at 45 and 90 degrees or stop manually at any angle
  • Maximum cutting thickness 7”
  • Maximum cutting size (LxW) 126x78”
  • Installation size (LxWxH) 20” x 16’-8” x 8’-8”
  • Weight 16000 lbs
  • Control Panel sets 4 different sizes repeatable up to 99 times, laser collimator to guide blade cut, quality Toshiba invertors, OMRON PLC and encoders, automatic safety stop if water pressure drops, option to operate manually or automatically.
  • Warranty: 1 year parts and labor
  • Financing: Leasing up to 84 months with 24 months no penalty option or loan financing

Call SIMCOUSA at 561-676-3337 and we will be happy to answer any questions you may have about stone saws.





Granite Bridge Saw, Model SIM-400
$32,500 with installation included in USA, FOB Dalton, GA

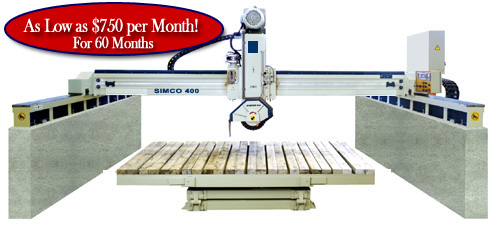

Granite Bridge Saw, Model SIM-400

The SIMCOUSA SIM-400 Granite Bridge Saw is similar to the SIM-625 but accepts up to a 400mm diameter diamond saw blade.  The SIM-400 is a PLC controlled machine. All operations are executed either manually by the operator or automatically by the program carrying out parallel cuts with a maximum of 8 different dimensions repeatable up to 1999 times. The control panel has an LCD display mounted on the right hand side of the machine. The control panel is positioned such that it makes it easy for the the operator to control the machine when the stone is being positioned. The saw is equipped with a laser guide to aid in lining up the cut. The saw has fix blade head, or optional tilting blade head that can be tilted from 0 to 45 degree. Made in China.

Specifications (To convert mm to inches multiply mm x .0394)

  Maximum Working Dimensions (WxLxH): 3200x3200x80mm
  Maximum Blade Diameter: 400mm
  Table dimensions(LxW): 2000x3200mm
  Table Tilt Angle: 0-85 degrees
  Table Rotation: Up to 90 degrees
  Motor power: 15 Kw (20HP)
  Overall dimensions(WxLxH): 5000x6000x2800mm
  Warranty: 1 year parts and labor
  Financing: Leasing up to 84 months with 24 months no penalty option or loan financing

Call SIMCOUSA at 561-676-3337 and we will be happy to answer any questions you may have about stone saws.



Gisbert Model CP35-MB Granite Bridge Saw,
$52,000 with installation included in USA, FOB Dalton, GA

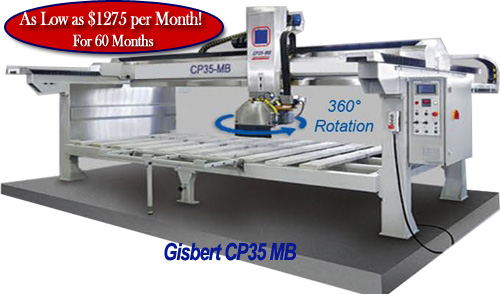

CP35MBb02

The Gisbert CP35-MB Granite Bridge Saw’s advanced technological design with digital electronic control panel makes it reliable, productive and easy to use. This saw includes monobloc steel frame. The CP35-MB bridge saw is designed primarily for granite and marble countertop fabrication and accepts up to a 500 mm diameter diamond saw blades. The head tilts to 45 degrees and rotates 90 degrees. Rotating and tilting table optional. Made in Spain.

Specifications

  • Disc Motor Power 10-15 HP direct drive, 230V 3Phase 60Amp Motor. Two speeds.
  • Blade Size 14-20”
  • Blade Tilt Angle 0-45 degrees (optional)
  • Saw Head Rotation 0-360 degrees with 90 degree stops, miter any angle 0-90 degrees.
  • Maximum cutting thickness 6”
  • Maximum cutting size (LxW) 130x 67”
  • Installation size (LxWxH) 16”-7” x 9’-7” x 7’-10”
  • Weight 6200 lbs
  • Control Panel programming to cut square sizes on repeat mode, slow and fast cutting speed option, digital electronics facilitates control of machine functions automatically with accuracy and reliability, laser collimator to guide blade line of cut.
  • Warranty: 1 year parts and labor
  • Financing: Leasing up to 84 months with 24 months no penalty option or loan financing

Call SIMCOUSA at 561-676-3337 and we will be happy to answer any questions you may have about stone saws.





Granite Gang Saw, Model SIM-80

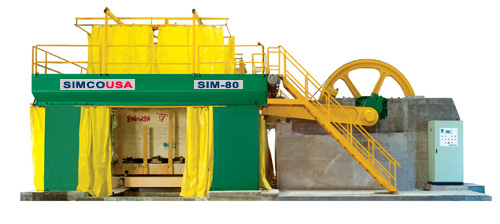

Stone Gang Saw, Model SIM-80

The SIMCOUSA Model SIM-80 Granite Gang Saw is a block cutting gang saw for granite or marble production of slabs of different thickness. The saw has an overall worktable length of 3.3 meters, a height of 2 meters and a  width of 2 meters.  This stone gang saw has a heavy duty construction machinery rating and high quality moving groups with constant lubrication. Stress resistant blade frame maintains the right tension for all 80 blades. Electrical centralized switchboard controls all functions of the machine.

Specifications (To convert mm to inches multiply mm x .0394)
  Maximum dimensions of blocks (WxLxH): 2000 x 3250 x 2000mm
  Maximum Number of blades: 80
  Blade length: 4300mm
  Cutting feed:  Up to 305mm/h
  Blade stroke: 800mm
  Strokes per minute: 85
  Flywheel shaft diameter: 340mm
  Motor power: 90Kw (120Hp)
  Warranty: 1 year parts and labor
  Financing: Leasing up to 84 months with 24 months no penalty option or loan financing

Call SIMCOUSA at 561-676-3337 and we will be happy to answer any questions you may have about stone saws.





Hydraulic Stone Splitter, Model Split SIM-40

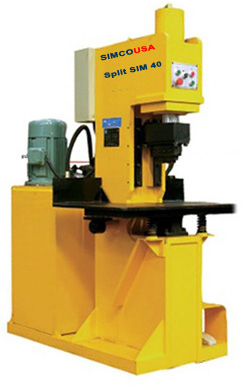

Hydraulic Stone Splitting Machine, Model Split SIM-40

The SIMCOUSA Hydraulic Stone Splitting Machine, Model Split SIM-40 is a hydraulically operated, 40 ton stone splitting machine for all kinds of stone. Designed for the production of small paving stones of various dimensions, it has a splitting length of 240mm and height of 280mm. This paving stone splitter has heavy duty construction, is easy to use, and withstands high stresses imposed when used for high volume paving stone production.

Specifications (To convert mm to inches multiply mm x .0394)
  Maximum cutting width: 240mm
  Maximum cutting height: 280mm
  Maximum pressure: 40 Tons
  Motor power: 7.5kw (10Hp)
  Warranty: 1 year parts and labor
  Financing: Leasing up to 84 months with 24 months no penalty option or loan financing

Call SIMCOUSA at 561-676-3337 and we will be happy to answer any questions you may have about stone saws.



SIMCOUSA also has used stone machines, slab polishing machines, used automatic edge polishing machines and used CNC machines by Comandulli, Intermac, Marmo Meccanica for the granite and stone fabricators. All used machinery is in excellent condition and ready to use.  See all used stone machines and bridge saws.

Stone Machines & Diamond Tools.
Call SIMCOUSA, Inc., 561-676-3337 to order.
