CNC Stone Milling Machines

SIMCOUSA is a supplier of CNC Stone Milling Machines for the granite and stone industries. These CNC stone work centers are primarily used for countertop and vanity fabrication. Below are samples of our best selling CNC machines from our complete line of large granite and stone machinery. Financing and leasing available on machinery subject to customer’s credit approval.  Credit Application Form.

Call SIMCOUSA at 561-676-3337 and we will be happy to answer any questions you may have about stone polishing machines.

All Machines have 1 year parts and labor Warranty
Leasing up to 84 months with 24 months no penalty option or
 loan financing

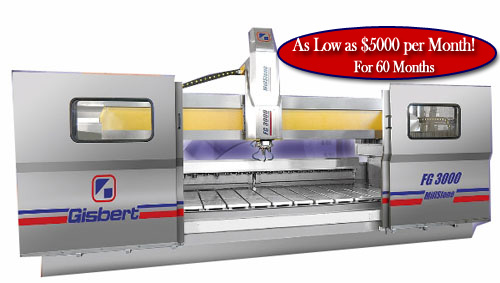

 Gisbert Stone Milling Machine Model FG-3000
$215,000 with installation included in USA, FOB Dalton, GA

FG3000b



The Gisbert Stone Milling Machine Model FG-3000 is a CNC controlled multifunctional milling machine used for marble and granite fabrication. It is a high production machine capable of doing precise drilling, milling and shaping  operations for countertop and vanity production.  Has powerful, reliable & auto ventilated electro-spindle.  Aluminum work table provided with grooves for fastening of vacuum pads, to insure that the work pieces are tightly locked in place even during heavy grinding operations. Automatic tools storage which permits automatic tools stocking, including the cutting units with vertical or convex circular blade. On request, the FG3000-MillStone can be supplied with continuous rotating fourth axis “C”, which makes it possible to use cutting units with vertical circular blade for rectilinear cuts or convex blade for curvilinear cuts.  All axes movements are powered by AC brushless servo motors. Moving components are lubricated by a centralized system. Device for spindle inclination, manually adjustable up to 3º, for the execution of drainboards with inclined surface.  Made in Spain.



Specifications (To convert mm to inches multiply mm x .0394)

Table Size: 3240 x 1800 mm
X Axis Run: 3350 mm
Y Axis Run: 1900 mm
Z Axis Run: 400 mm
Electric Spindle Power: 13.2KW,
Max RPM: 10,000 RPM
Oriented stop change tool: Si
Hollow shaft for refrigeration tool: Si
Electro-spindle refrigeration for water: Optional
Spindle turn of B axis: +3 to -3 degrees
4º Axis C - Turn constant disc 0-360 degrees
Axis X - Servomotor power: 11 Nm @3000 rpm
Axis Y (Axis Gantry) - Servomotor power: 16 Nm @ 3000 rpm
Axis Z - Servomotor power (with brake): 11 Nm @ 3000 rpm
Footprint: (LWH) 5010 mm x 3510 mm x 2760 mm

 Warranty: 1 year parts and labor
 Financing: Leasing up to 84 months with 24 months no penalty option or loan financing

Call SIMCOUSA at 561-676-3337 and we will be happy to answer any questions you may have about stone polishing machines.



SIMCOUSA also has used stone machines, slab polishing machines, used automatic edge polishing machines and used CNC machines by Comandulli, Intermac, Marmo Meccanica for the granite and stone fabricators. All used machinery is in excellent condition and ready to use.  See all used stone machines and bridge saws.

Stone Machines & Diamond Tools.
